VV-Soil

VV-Soil is a probe for measuring the soil humidity, in the garden, in the fields, in small and large pots, or for detecting the presence / absence / level of water, for example in tanks or other containers, wells, drinking troughs.

sensor soil humidity water

The sensor is capacitive, has good precision and it is very resistant to corrosion (unlike typical resistive sensors), and the measurement of humidity does not depend on the salinity of the soil.
The probe is sealed and can be submerged.

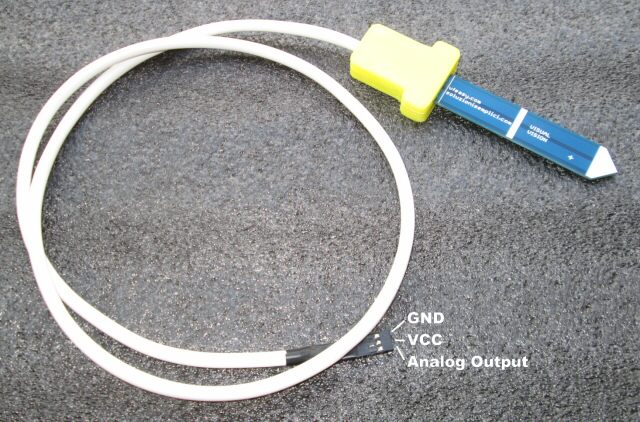

It connects with a standard 2.54mm Dupont connector; the pinout is shown in the photo.
It requires a constant power supply voltage between 3 and 12 Volts (absorption: less than 10mA).
It has an analog output (2KOhm output impedance) to which you will typically apply a load of 1MOhm.
With 3.3V power supply and about 10MOhm load the "dry" output (humidity 0%) is about 2.5V, when immersed in a jug of water (about 100%) the output is about 1.5V. With other supply voltages, the values change.
Notice that it is necessary to supply a constant stable power supply voltage (e.g. taken from a good voltage regulator) because the output voltage depends on the supply voltage.

[Get VV-SOIL NOW >>> go below to the Order form >>>]



We use VV-Soil inside TXsoil: our device for measuring and transmitting humidity
TXsoil measures and transmits (with transmission interval of your choice) the soil moisture, or the presence / level of water. It is supplied in an IP56 box and normally works with 4 AA batteries (1.5V, alkaline or Lithium). It can transmit HTTP / MQTT via WiFi to multiple visualization and automation systems (including our DisplayRX, ControlHUB) and in RF version also with a special low consumption RF transmission (received from DisplayRX, ControlHUB or RXTXeasy GSM).
It also exists in GSM version, and can call a script on your Web server (inserting a SIM; click here for the parameters passed to the HTTP script), or speak to ControlHUB (thanks to its internal Web server, if port 80 is routed to the Internet) .

We have also TXtemp (temperature) and TXdata (tx of anything)
It is interesting to measure the soil moisture, but we have also thought of other things; and so then we have TXtemp to measure the temperature (one of the uses of TXtemp is in association with Orologio/Superclock), and for practically any type of measurement TXdata (RS232, RS485 ModBus) - which can be connected to thousands of professional RS232 or ModBus existing third parties meters (and there is something for all needs: temperature and humidity meters, anemometers, voltage meters, energy, light meters, water meters, presence sensors, brightness sensors, soil moisture sensors, etc. ; practically all professional meters are available with output in ModBus or RS232 standards; and not just meters).




Get VV-Soil
The product is sent in shockproof packaging.
Made in Italy!
(For any questions contact us...)

PayPal or Credit Card
Purchase by using the following button and adding to the PayPal cart (where you can change the quantity).
There is a slight surcharge which covers PayPal fees.
Version:
[availble soon]

Bank / SEPA wire transfer in advance
Buy by filling out the order form below.
Version:


+ Sending 9.95€ for UK France Germany Austria Belgium Netherlands Spain Poland - can be combined with other orders on this site - you pay only one shipment; you can make various orders and then wait for the total by email (contact us and/or look at the SPAM folder in case of problems)

Quantity:
First name:

Last name:

Address (street and house number and any further information):

Postcode/ZIP and Town:

VAT number (if you have one):

Telephone (can be used by the courier for delivery):

Your email address:


I accept that my personal data will be used for shipping, billing and any product communications by VisualVision, in accordance with the laws in force; will be treated in accordance with the laws in force (for information or changes you can contact us with the contact form...

After sending the order, you will automatically receive an email with a summary, and the data for the bank / SEPA wire transfer.
If you do not receive it within a few minutes, check the "Spam" folder of your mail program or Gmail or other.
